2018 Chase Element Complete, Race Ready Out The Box

Chase Bicycles 2018 “Element” series are some of the best high end complete BMX Race bikes in the industry. The bikes come in 5 different sizes (Expert, Pro, Pro Xl, Pro XXL and cruiser). Today we are featuring the Pro XXL model! Check out the stats!

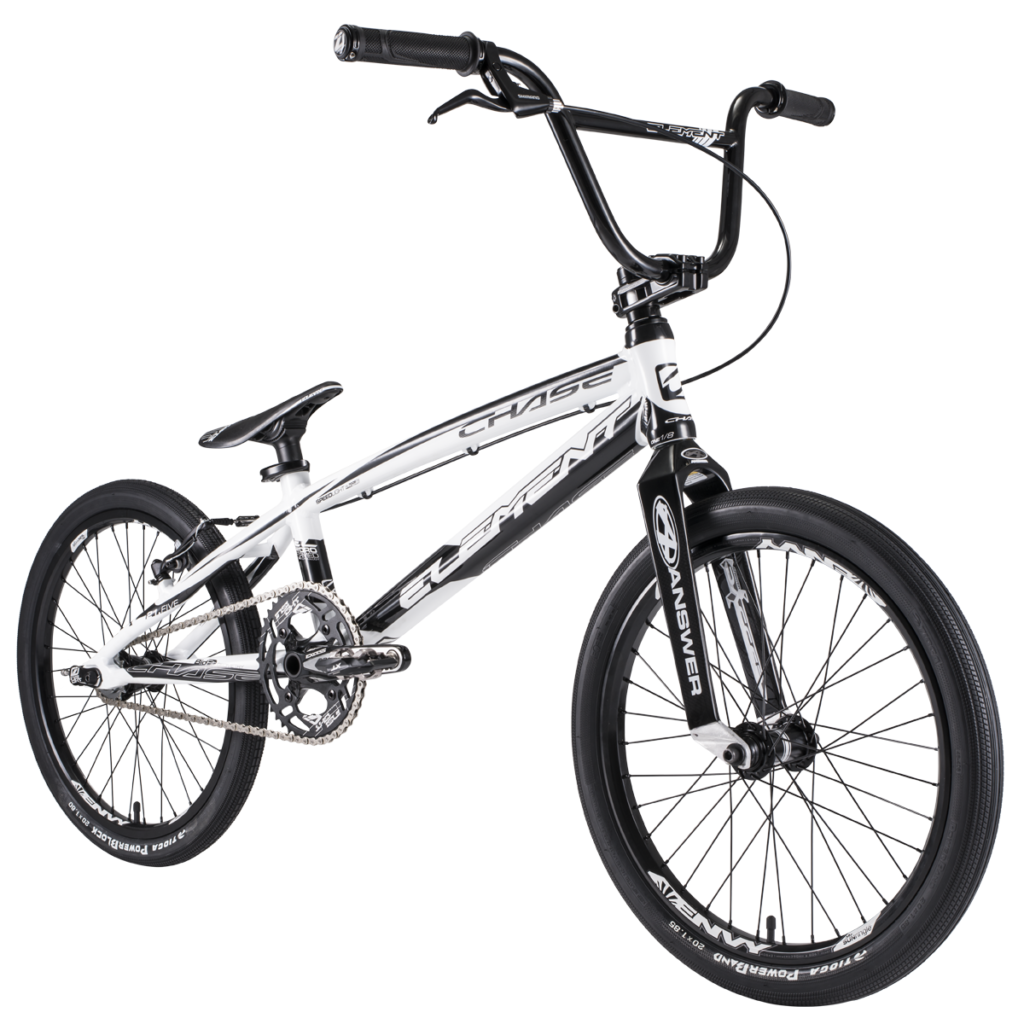

Chase Element 2018 bmx Complete
FRAME: Chase Element Pro XXL 21.5″ Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8″, Water Decals
FORK: Answer Dagger Carbon Pro, Alloy Drop Out 3/8″ Axle, 1-1/8″ Alloy Steer Tube, Alloy Top Cap
HEADSET: FSA Impact Integrated Sealed Bearing
HANDLEBAR: Chase Element Bar 8.25″ Rise, 12° Back Sweep & 1° Up Sweep
GRIPS: Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM: Insight 53mm 6061 T6 Alloy CNC Laser Etched Logo
BB: Outboard BB Cups BC 1.37″x68/73mm Cartridge Bearings
CHAINRING: Insight 44 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring
CRANK: Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL: Nylon Platform Pedal 9/16″
CHAIN: KMC Z610HX 1/2″x3/32″
COG: 16 Tooth
FRONT HUB: Chase Element 3/8″ Axle Hub, 36H, Sealed Bearing
REAR HUB: Chase Element 10mm Cassette Hub 36H, Sealed Bearing, Steel Cassette Body, 6 Pawls (3×2), 45T, 3×90 Points Of Engagement
SPOKES: 14 Gauge
NIPPLES: Alloy Nipples
FRONT RIM: Sun Rims Envy Front 36H 20×1.75″ Schrader valve
REAR RIM: Sun Rims Envy Front 36H 20×1.75″ Schrader valve
FRONT TIRE: Tioga PowerBand 20×1.85″
REAR TIRE: Tioga PowerBlock 20×1.60″
TUBES: 20×1.50″/1.75″
BRAKE LEVER: Shimano Alivio
BRAKE CALIPER: Shimano Alivio
SADDLE: Elevn PC Pivotal
SEAT POST: Chase Aero Pivotal 27.2x260mm Polished Alloy
SEAT CLAMP: Chase Aero QR Alloy 31.8mm
CHAIN TENSIONNER: Insight Twin Hole Laser Etched Logo
COLOR: White with Black graphics
WEIGHT: 21.05 LBS
RIDER SIZE: 5’9″ – 6’3″

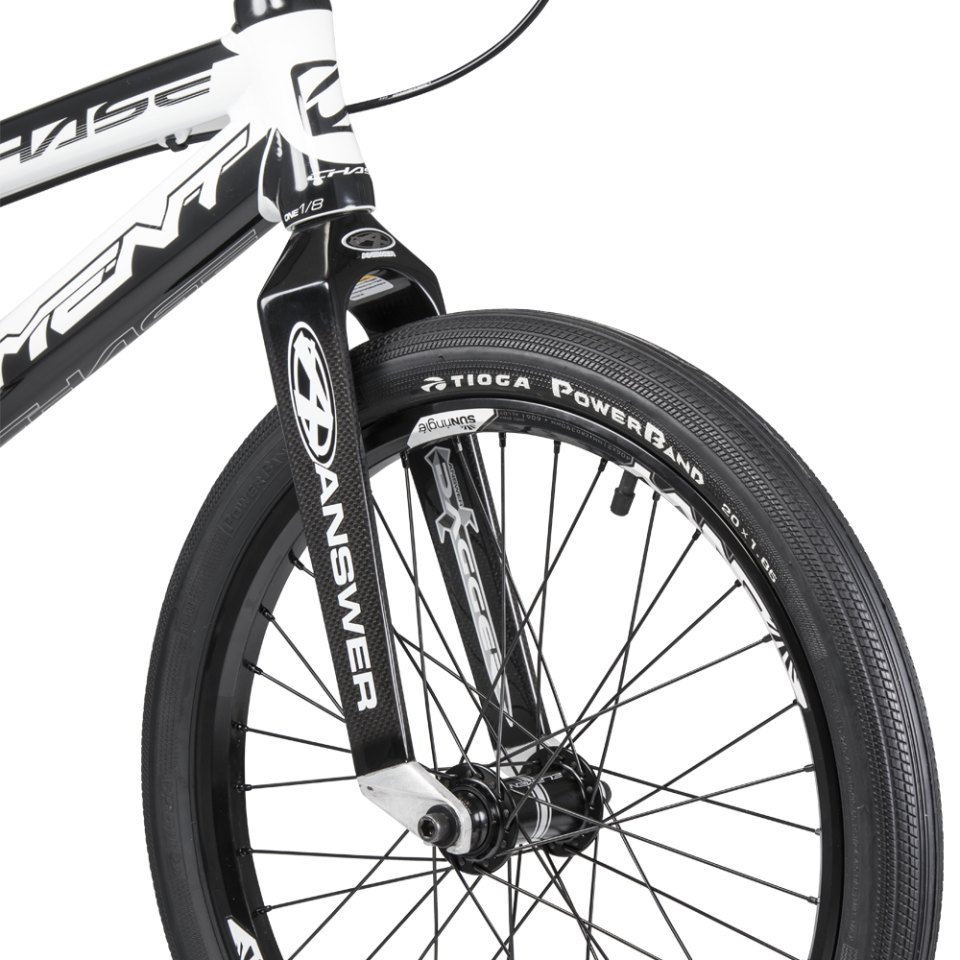

Chase element BMX Answer Forks

“Utilizing the same Olympic Gold Medal winning geometry used by Connor Fields on the Chase RSP series of frames that have also helped Joris Daudet win the UCI World Championship and back to back USA BMX #1 Pro titles, the Element frame is the center of this incredible bike! The Frame features Hydroformed Premium Speedlite Alloy, with the Chase BIO-FIT geometry through out the line.” ~CHASE BICYCLES

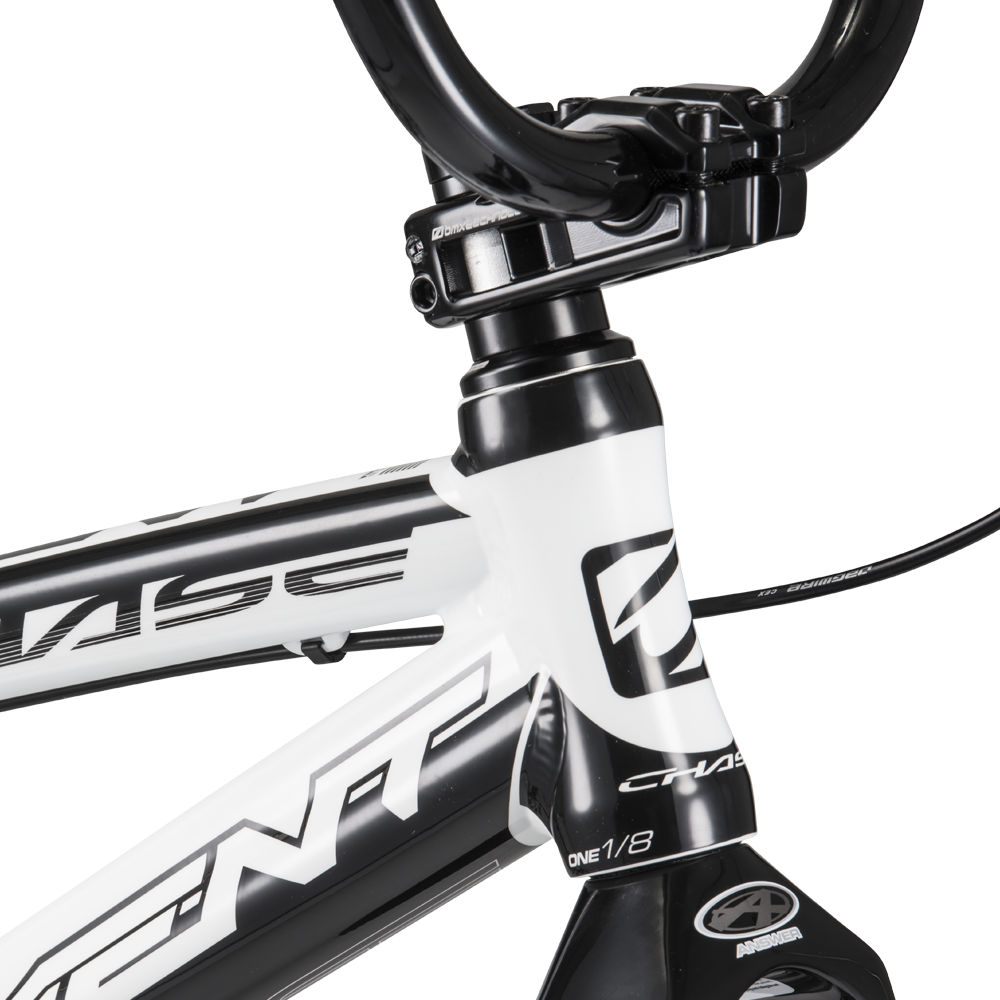

Chase element BMX Head Tube 2018

“The Chase Element offers our exclusive Aero Pivotal seat post and Aero clamping system, with Elevn Pivotal seat. Hi-end features include a Answer Dagger Carbon Fiber Fork, Chase Dual Engagement Rear Cassette hub system with 6 Pawls, 270 points of engagement, Excess LSP 2 Piece Cranks, Tioga PowerBlock & PowerBand Tires, Shimano Brakes, Insight C.O.G.S. grips, Sun Envy rims, Insight stem, KMC Chain, and Insight 4 Bolt Chainring.” ~ CHASE BICYCLES

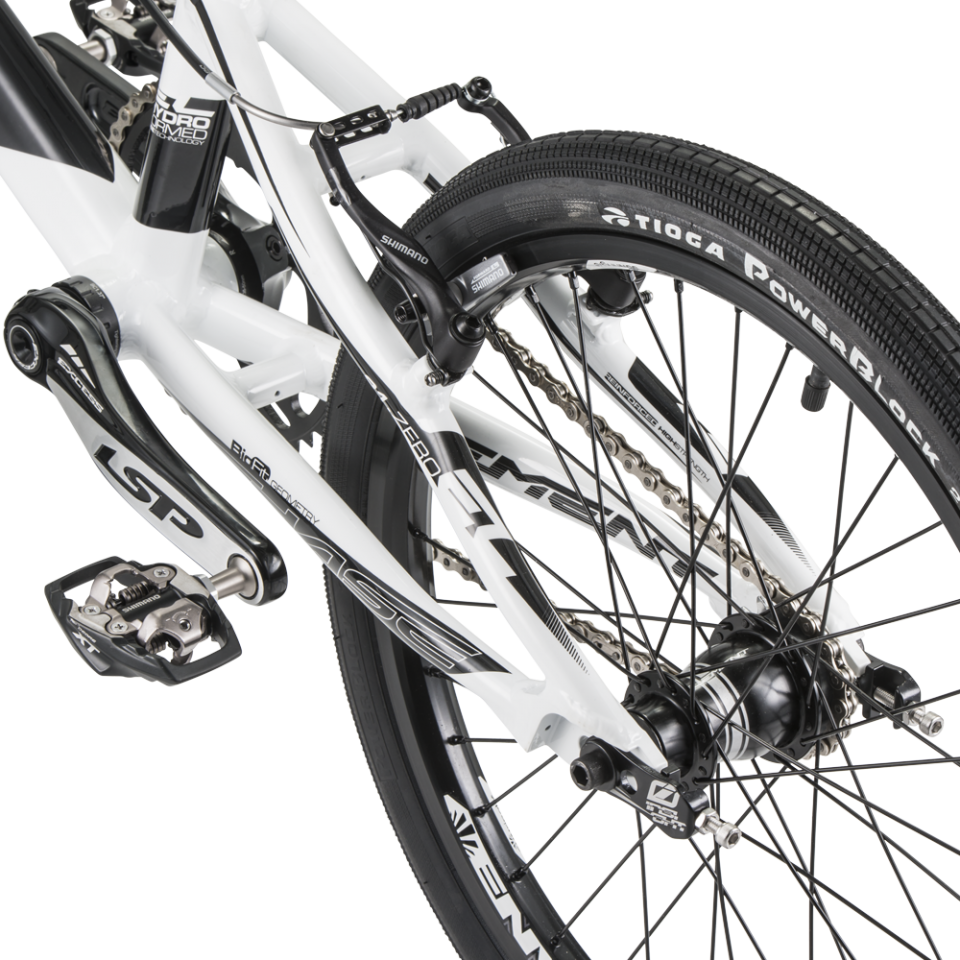

Chase Element BMX rear
For more info on the 2018 Chase Element Pro XXL visit ChaseBicycles.com

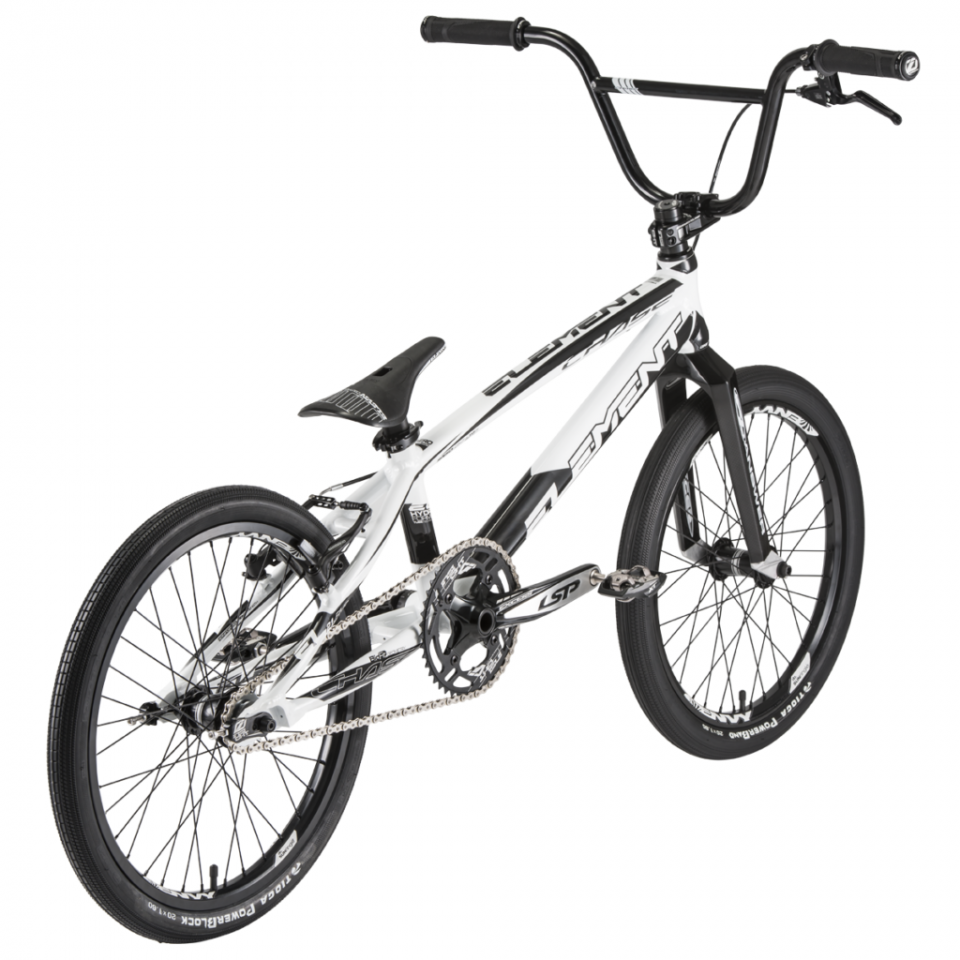

Chase Element 2018 bmx complete 1
