ZERONINE - DRK MTR Carbon BMX Race Frame

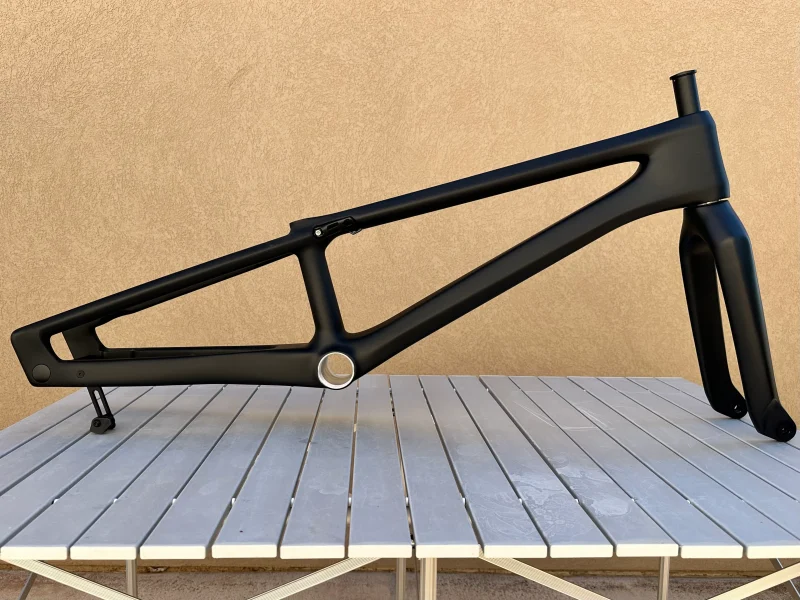

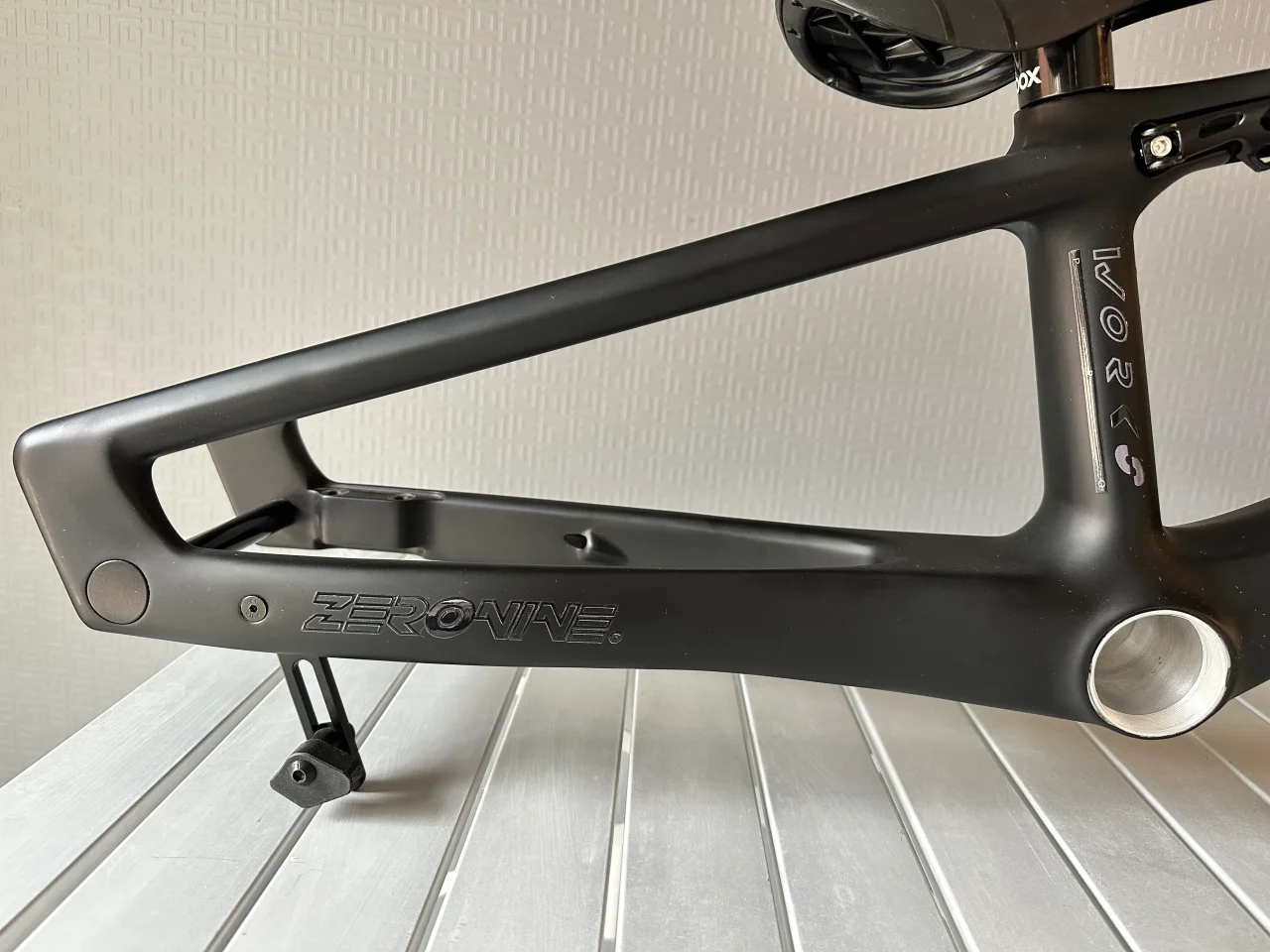

Zeronine is bringing the heat with their new carbon BMX racing frame! It’s called the DRK MTR and it’s looking good and fast. It features some extra beefy tubing on the chain stay, internal quick release seat post clamp, fixed dropouts and chain tensioner. It has a nice low profile stance and comes in several sizes. I’m looking forward to seeing these bad boys at the track!

The Zeronine Carbon Race Frame is built using advanced composite development techniques and updated mold technology. Each frame features hand-laid Toray UV-treated carbon fiber with optimized directional layering for maximum strength, stiffness, and responsiveness. Finished in matte UV-protected black or white, this frame delivers elite performance at an ultra-light race weight—only 2.5 lbs / 1134 g for the XL (without axle). ~Zeronine

0 comments

FEATURES:

Hand-laid Toray UV carbon fiber
Directional carbon layup for optimal strength-to-weight
Matte UV-resistant finish (black or white)
Expert XL Frame runs run 1 1/8″ head tube.
Pro – 3X frames run an Oversized Tapered head tube: 1 1/8” to 1 1/2” with 45° bearing recess.

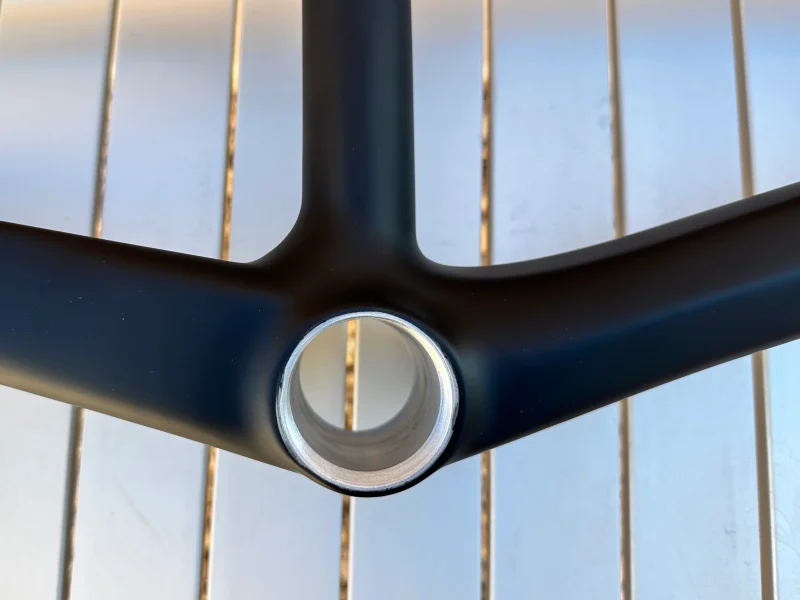

T47 bottom bracket shell – The latest in oversized BB technology
Includes adapters to change the T47 to a classic European threaded BB
The frames bottom bracket shell will allow compatibility to run 24mm and 30mm spindles.
Fixed 15mm alloy through-axle
Machined 6061-T6 alloy dropout insert (no loose washers)

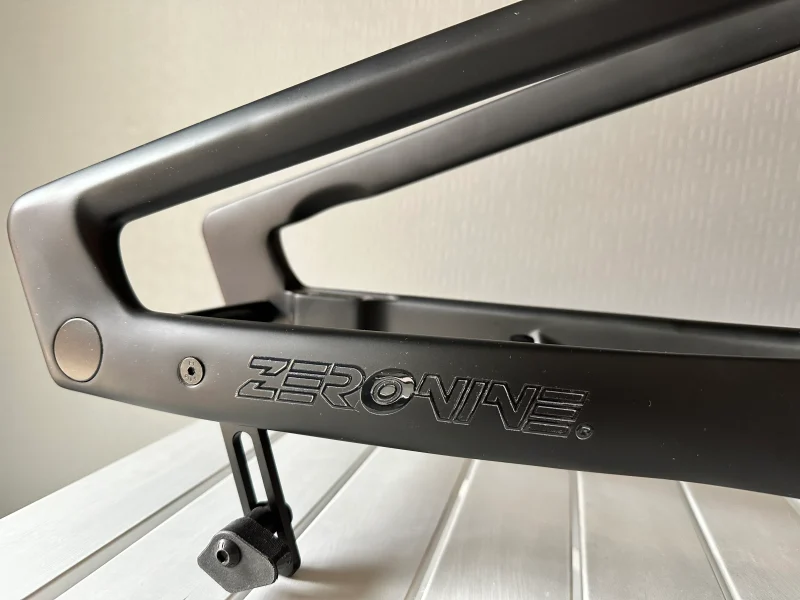

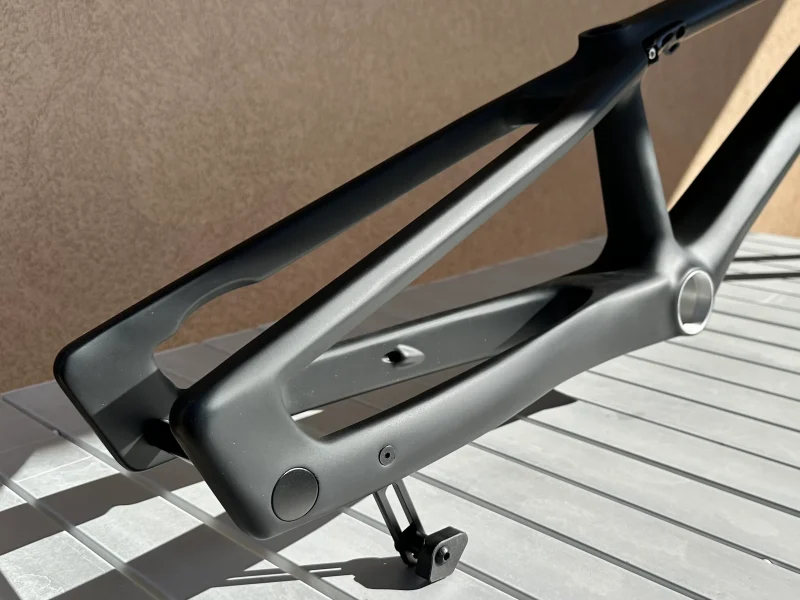

Integrated chain tensioner with Teflon-coated adjustable slide
Optional tensioner upgrades:
- Internal-bearing tensioner wheel
- Spring-loaded arm with multiple load settings

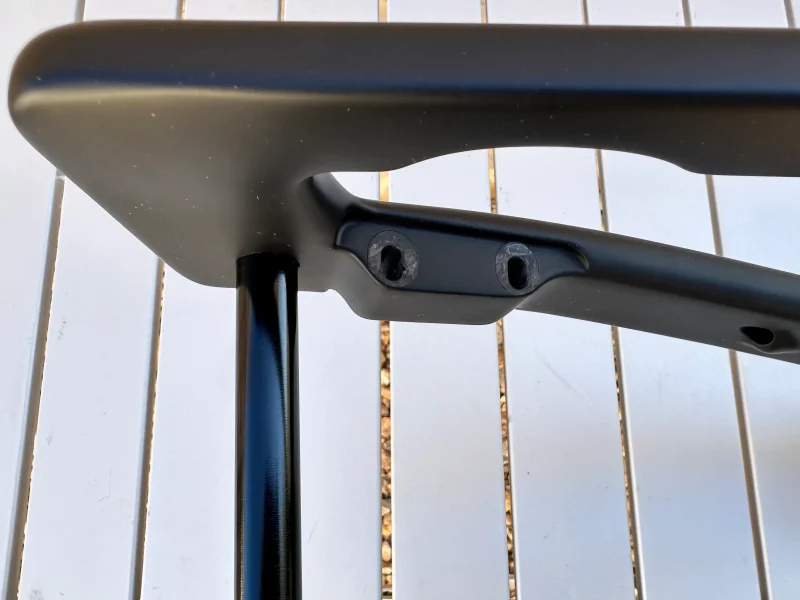

Integrated disc brake mount (for 120mm rotor)
Internal brake cable routing

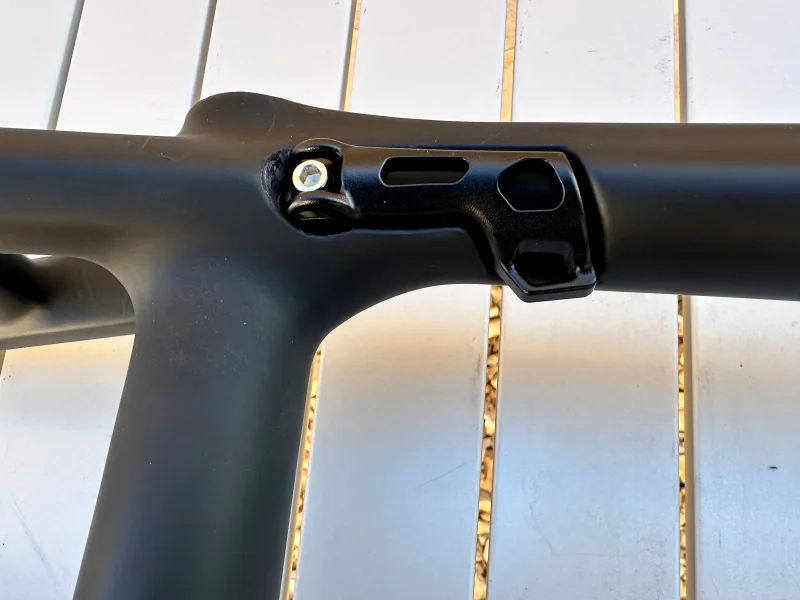

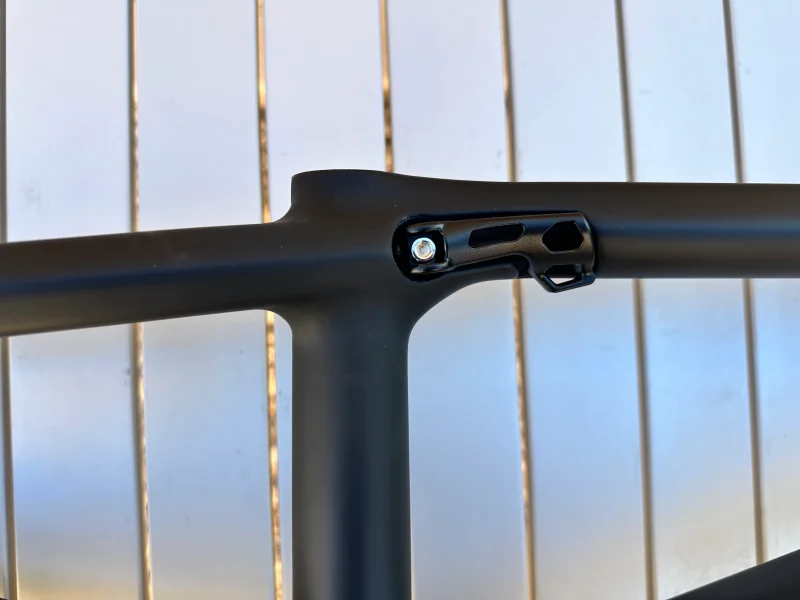

Integrated seat clamp with 27.2 mm seat mast
SIZES: Expert XL, Pro, ProXL, Pro XXL, ProXXXL
COLORS: Matte White or Matte Black
PRICE: $1,699.00
