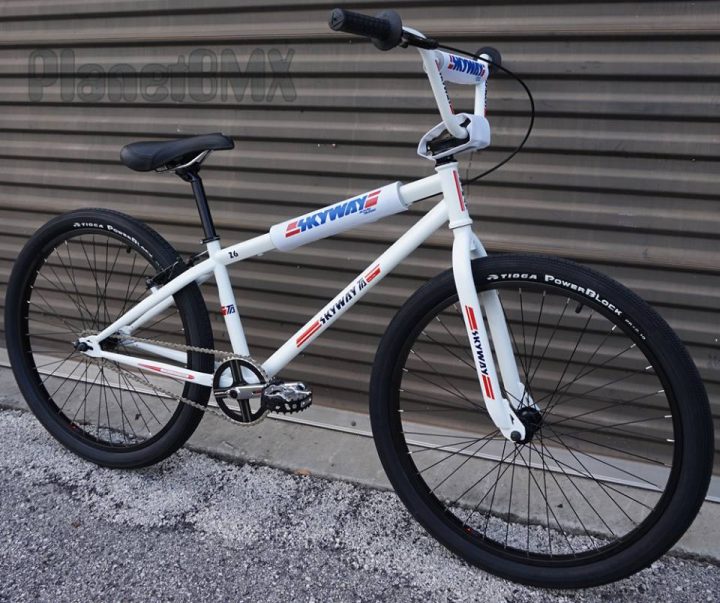

PlanetBMX Now Offering Skyway T/A 26″ Competes

PlanetBMX.com have listened to their customers and are now offering the Skyway T/A 26″ as a complete!! Now you don’t have to worry about piecing together your new frame (Which can get pretty expensive pretty fast). This is pretty cool! We think every brand should make a complete option of their bikes, but I digress 😉

Peep the Specs on this bad boy!!

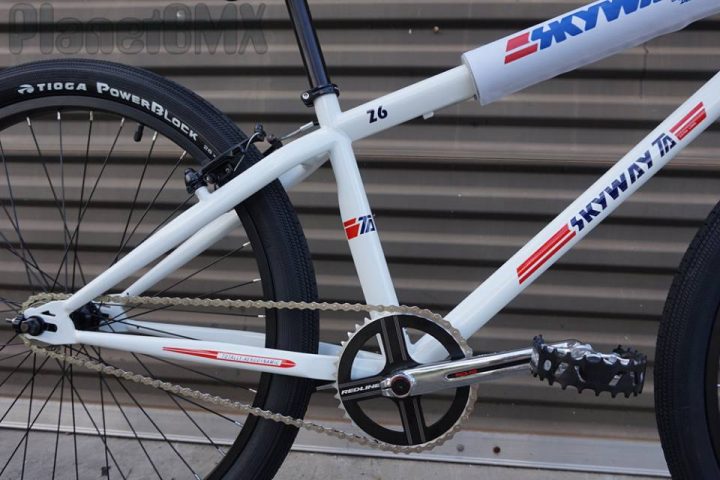

Frame: Skyway T/A XL 26″. Classic aerodynamic full 4130 Cr-Mo tubing, just like back in the day! White.

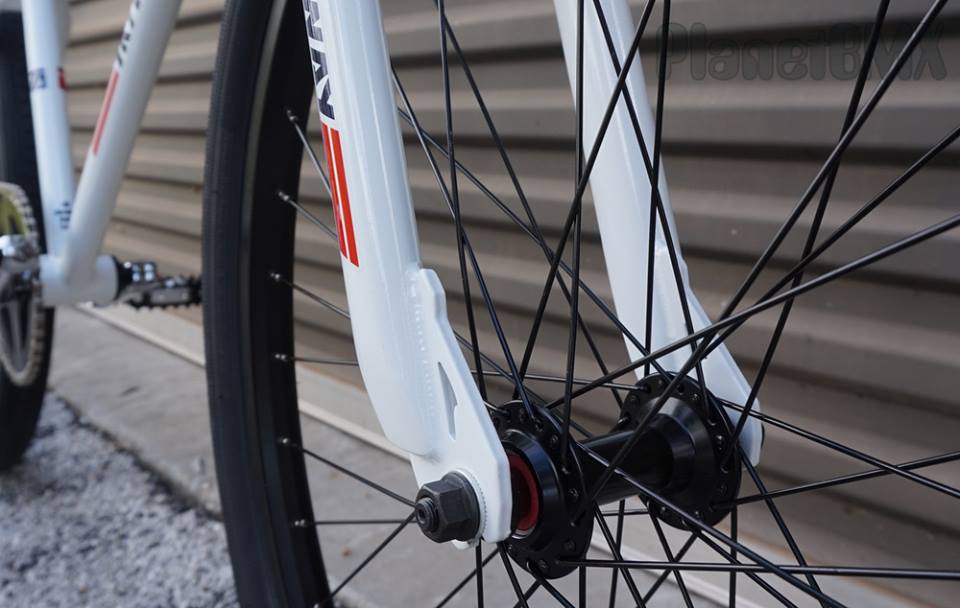

Fork: Skyway T/A 26″. Classic aerodynamic tear-drop shapped fork legs. Full 4130 Cr-Mo. White.

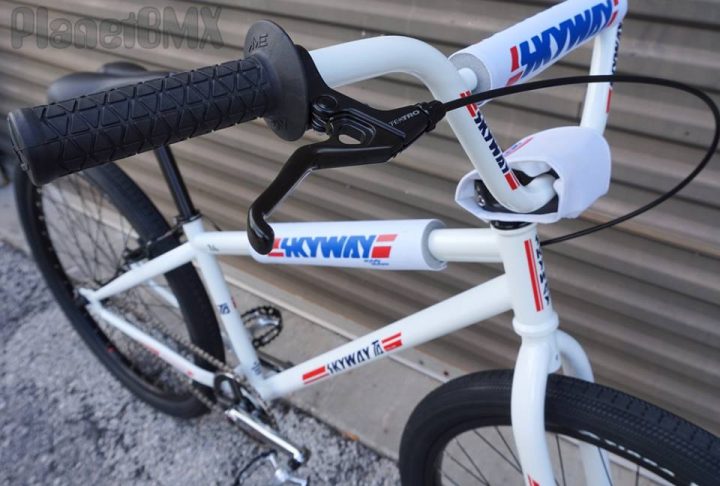

Bars: Skyway cruiser. 29″ wide x 6.75″ rise. White.

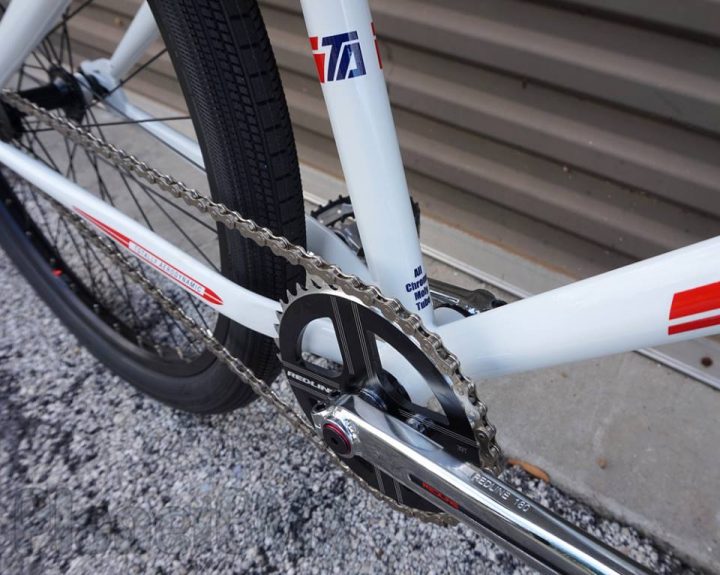

Cranks: Redline Flight Cranks. 180mm, Dual Pinch, 4130 Cr-Mo, Chrome Plated w/Retro Decals.
Bottom Bracket: Redline Sealed Euro BB
Headset: Origin8 Integrated Headset 1-1/8, Aluminum top cap and star nut. Black.
Stem: SE Racing Retro top load. 55mm reach. Black.
Grips: A’me Tri classic grips. Black.

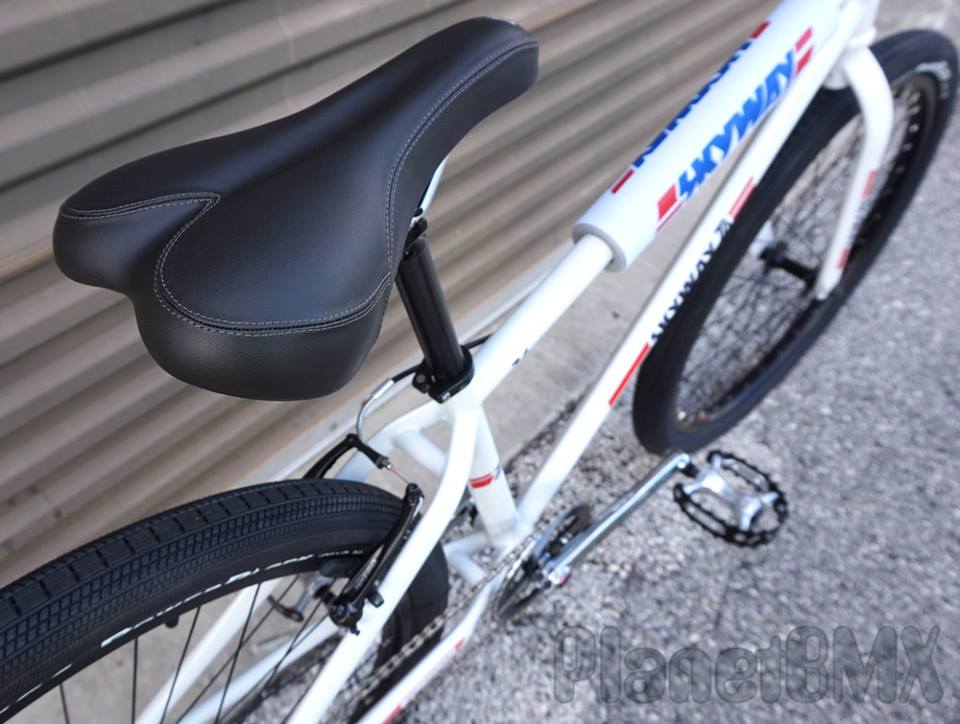

Seat: Orgin8 Sport Uno-S padded with rails. Black.
Seat Post: Alloy 25.4mm. Black.
Seat Post Clamp: Redline Flight 1-1/8″. Black.
Rims: Alex 26″ x 1.75″ DM22 double wall. Black.
Front Hub: Black Ops MX-3100 Alloy Sealed bearing. Black.

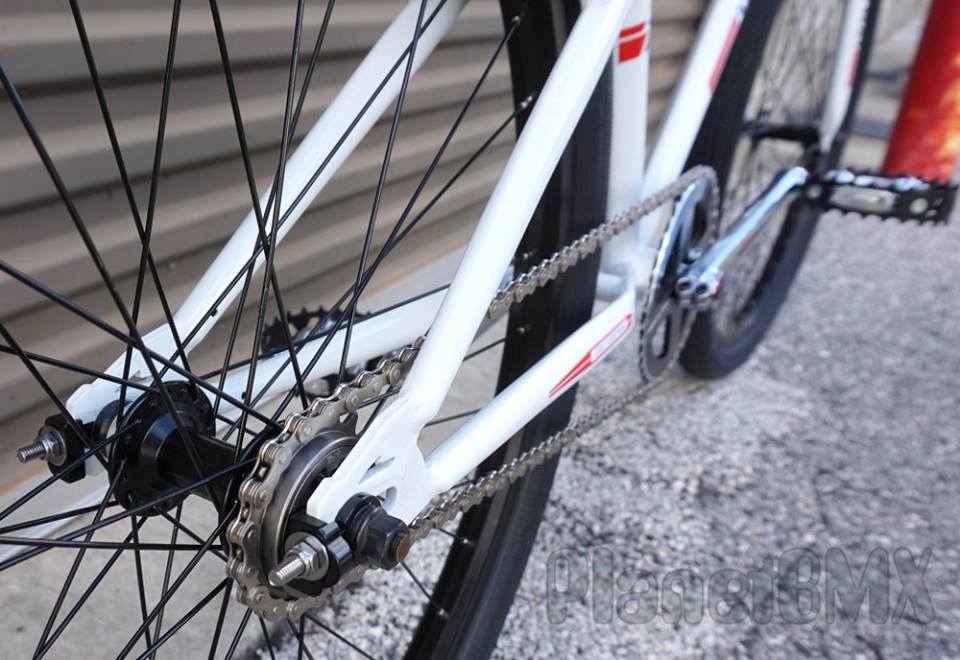

Rear Hub: Black Ops MX-3100 Alloy, Flip-Flop, Sealed bearing. Black.
Spokes: Black, Stainless Steel
Tires: Tioga PowerBlock 26 x 2.10″
Pedals: VP-747 Bear Trap Alloy 9/16″ Platform w/ Cr-Mo spindles. Black.

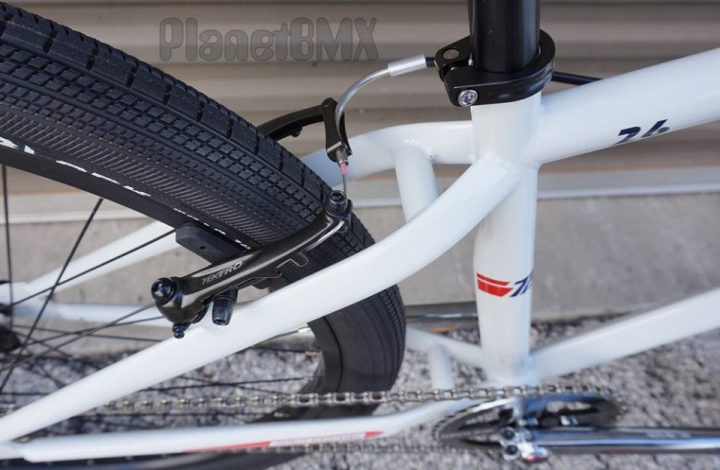

Brake: Tektro 930AL Linear
Brake Lever: Tektro
Chain: KMC Z33
Gearing: 39/17

Extras: Single-bolt Chain Tensioners. Black. Skyway 3-piece padset. White w/ classic Skyway logo.
Geo and Sizing details:
22.7″ Top Tube
Euro BB
1-1/8″ threadless Integrated headtube
V-Brake mounts
Headtube- 71.5 degrees
Seat Tube- 70.5 degrees
Chainstays- 16.5″ to 17.75″
25.4 size seatpost
Uses 1-1/8″ seatpost clamp
BB Height- 12.3″
Standover Height: 25.80″
Headtube Length: 4.75″
Seatpost Height (center of BB to top of top tube) 13.62″
Uses a 1-1/8″ “integrated” style headset

Now you know!! 🙂
